Motion balance chair assembly

In the package you will receive 15 chair parts and 2 plastic bags.

One plastic bag contains 23 flat head screws M6 and barrel nuts. The other - tools and 8 flat head screws M8, flange nuts and Nyloc nuts (blue nylon).

First steps

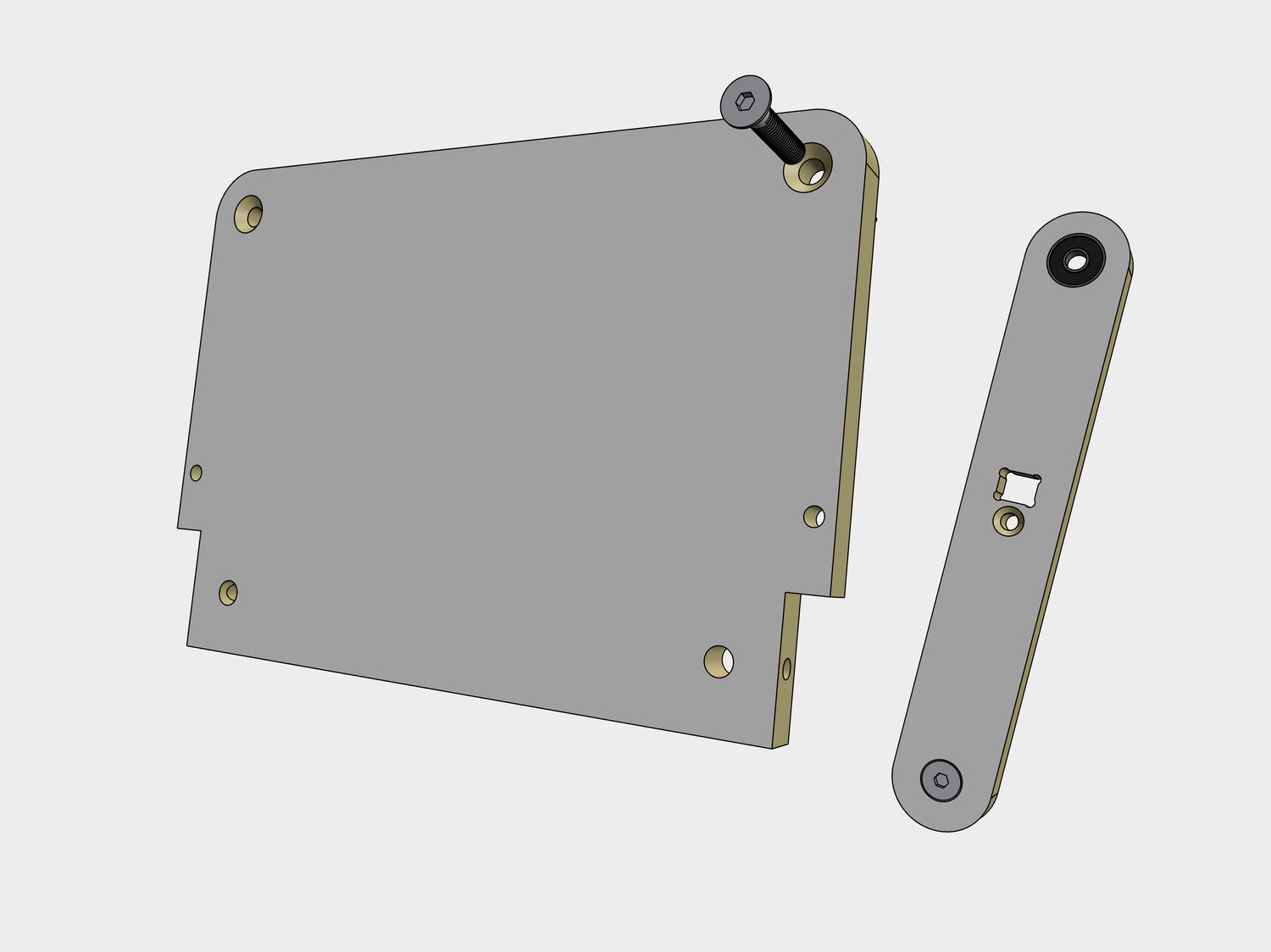

Take all the M8 flat head screws and 8 flange nuts.

Insert screws into the countersunk holes on the swing arms and side panels. Tighten securely.

Here's a helpful tip: avoid assembling the chair on the floor. I've tried it before, and it's incredibly uncomfortable. Instead, try assembling it on a table or any elevated surface to make the process much more comfortable and efficient.

  • To the both side panels insert flat head screws into countersink holes and tighten flange nuts (those without blue nylon).

  • Do the same to 4 swing arms.

  • Tighten securely.

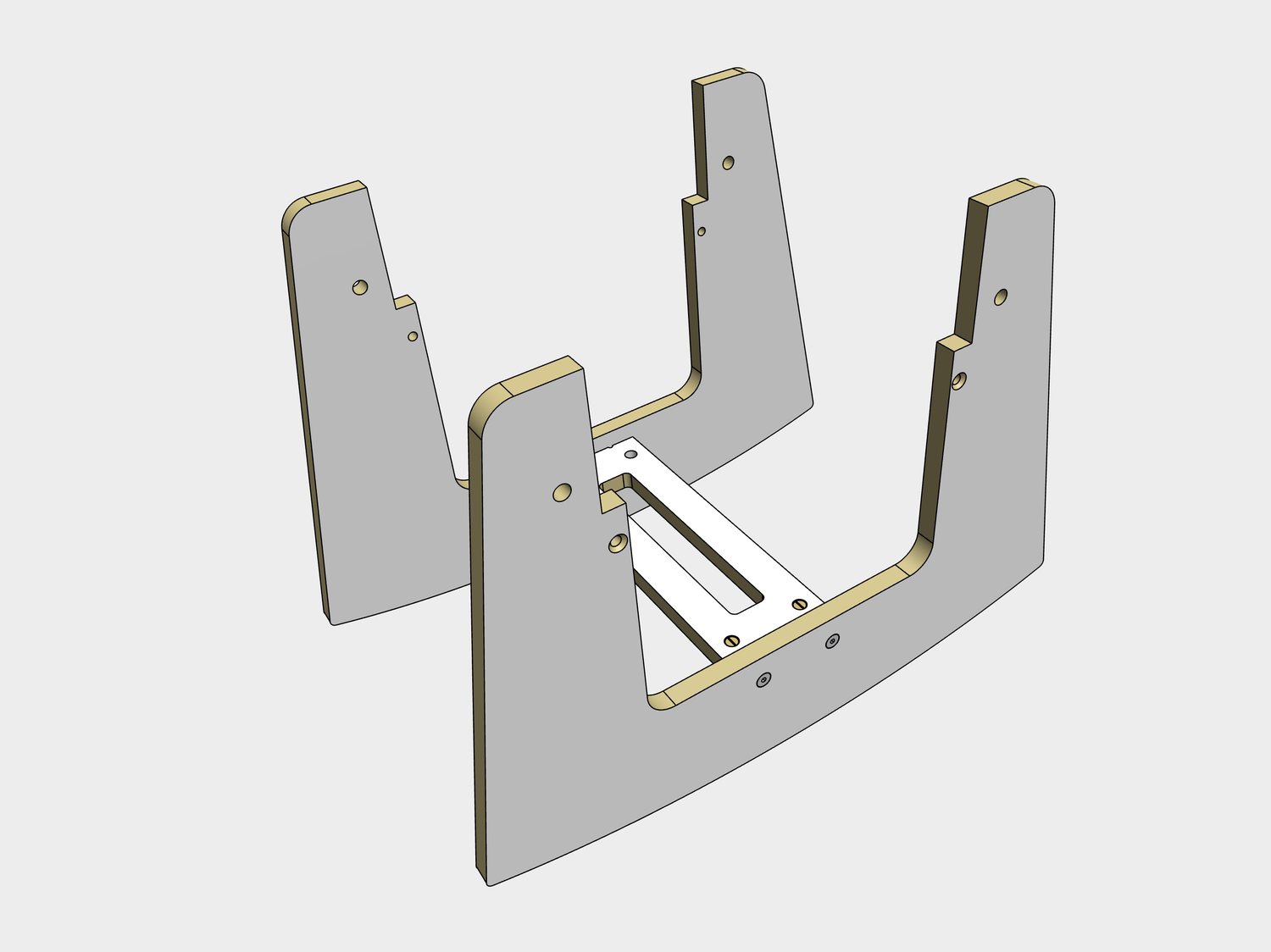

Base assembly

Connect both U-shape panels and the crossbar.

  • Ensure smooth screwing of the flat head screws and barrel nuts, and avoid pressing to prevent damage to the threads.

  • You will need 4 screws M6 and barrel nuts.

  • Base part is ready and can be put aside for a while.

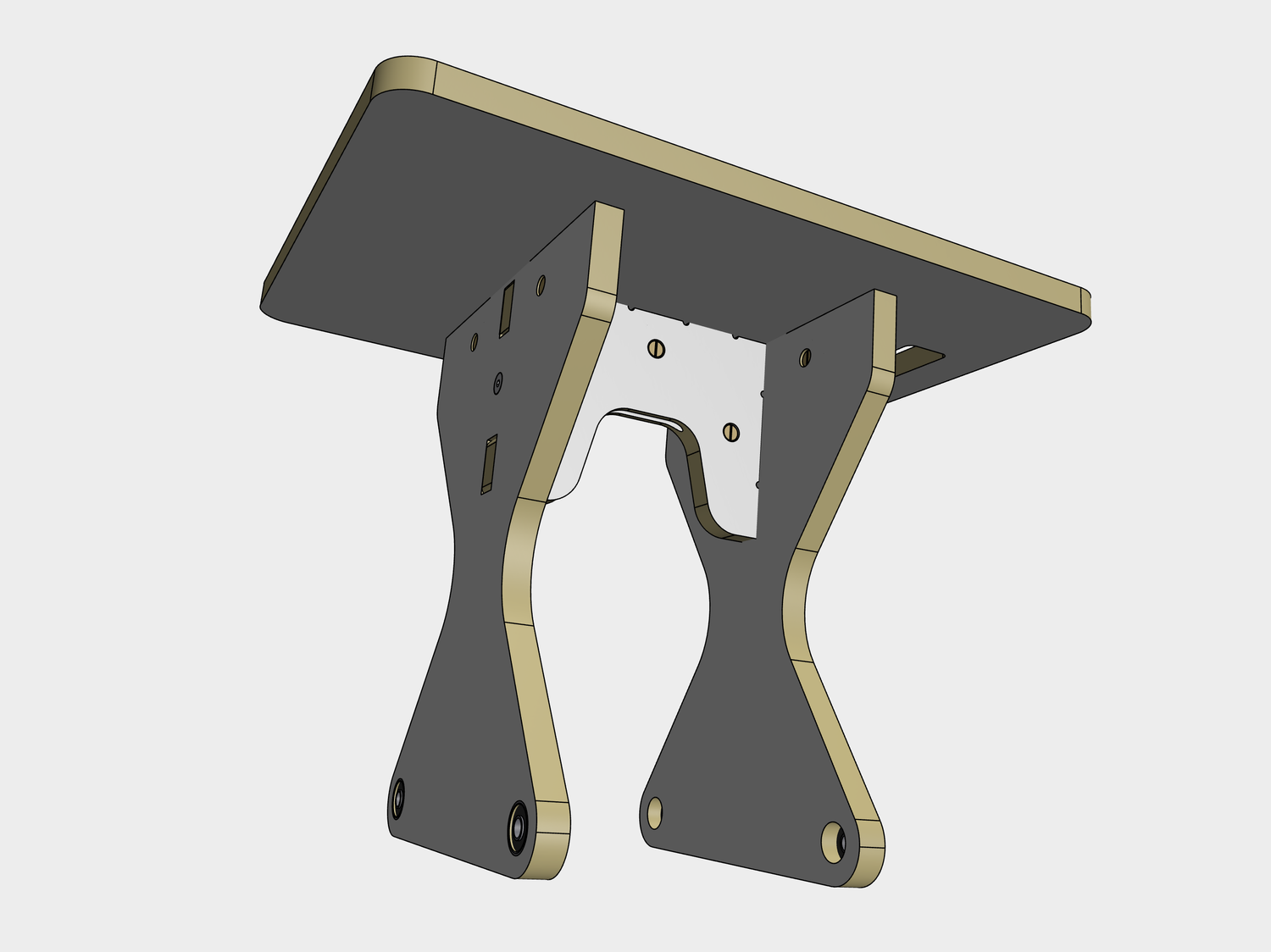

Seat frame

To assemble the seat frame you will need 7 flat head screws and barrel nuts.

  • ⚠️ Important: Make sure the bearings on the seat side panels face outward. This is necessary to correctly insert the swing arm screws later.

  • Join the side panels with the crossbar. Connect the parts loosely at first — don’t fully tighten the screws yet.

  • Place the seating surface onto the side panels. Once everything fits together properly, tighten all the screws.

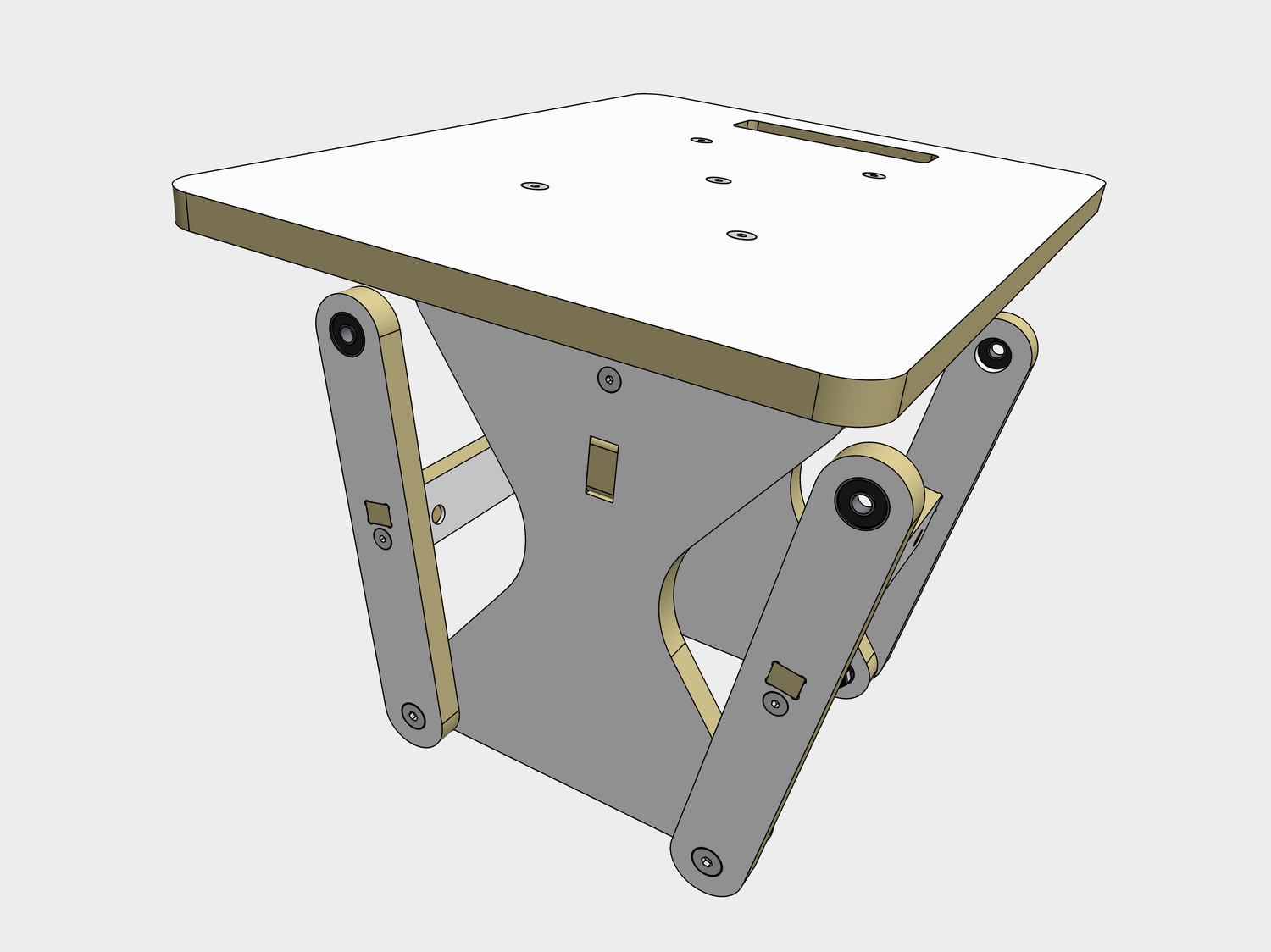

Swing arms

Take 4 already prepared swing arms and attach them to the seat frame using only Nyloc.

  • Insert a swing arm screw through the bearing on the side panel from outside. Fasten it with Nyloc nut securely.

  • Add the crossbar to the swing arm.

  • Add the other swing arm and repeat all on the opposite side.

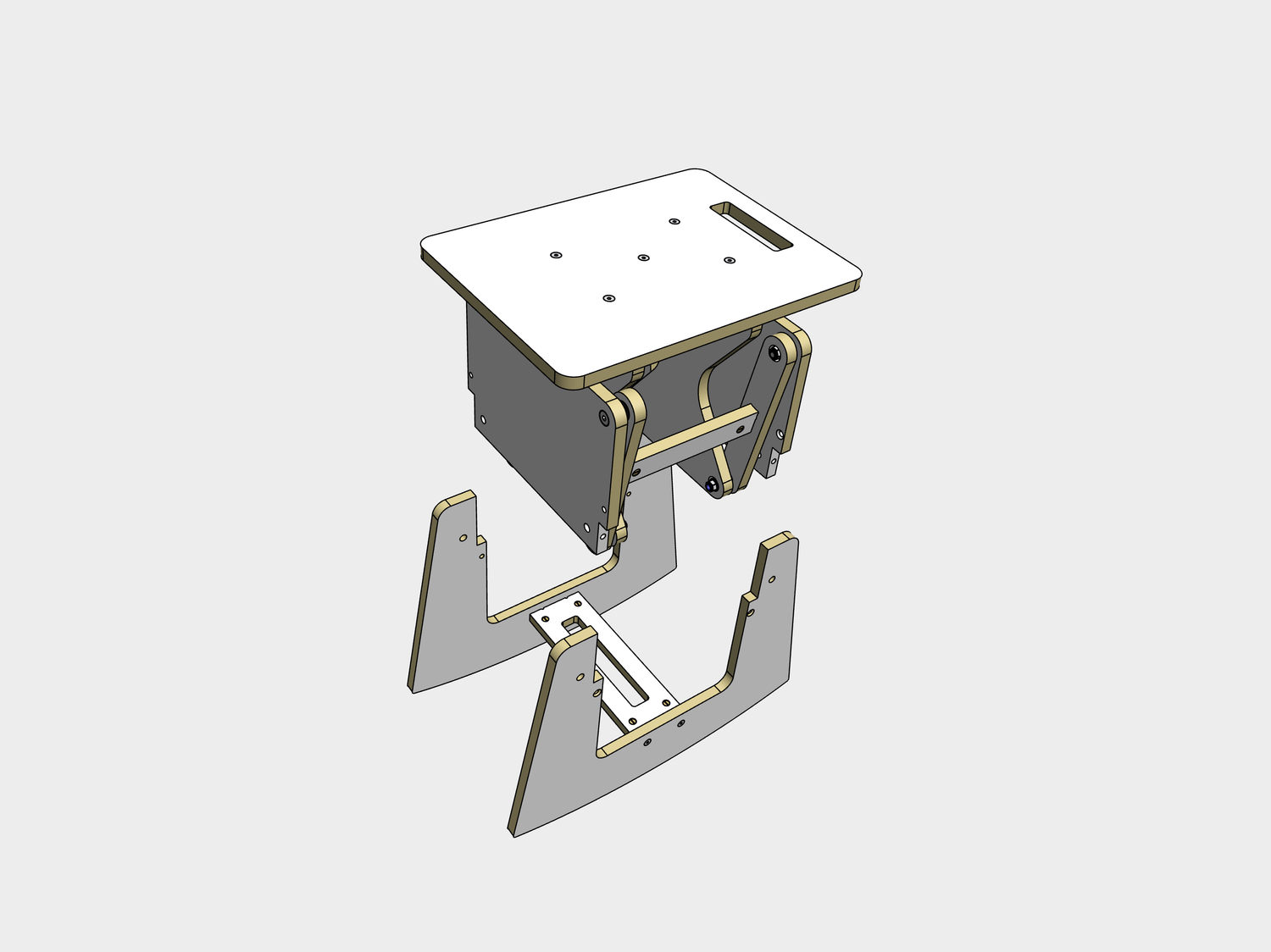

Final assembly

Hang the seat frame on the already prepared base and tighten the Nyloc nuts.

  • Add the side panels to the swing arms from both sides. Fasten Nyloc nuts. The Upper part is ready.

  • Now connect the upper part to the base part. se tle las 8 screws and barrel nuts to connect both parts.

  • The upper part must swing smoothly. It is done!

Congratulations, you've completed the job!

It was quite the journey, but you made it through. Well done!

If you have any questions or concerns about the assembly process, please don't hesitate to reach out to me via email - bekinkygear@gmail.com. I'm happy to help in any way I can. Enjoy your newly assembled chair!
